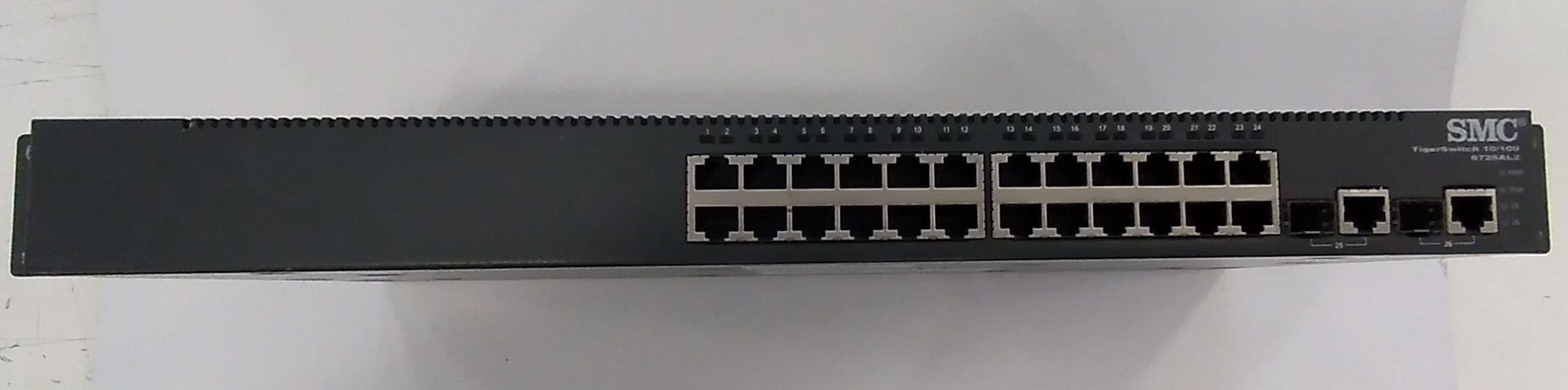

SMC Networks Tiger Switch 10/100 6726AL2 Switch

Leírás

Használt SMC Networks TigerSwitch 10/100 6726AL2 menedzselhető switch

24-Port 10/100MbpsFast Ethernet Managed Switch
24 auto-MDI/MDI-X 10BASE-T/100BASE-TX ports
2 Gigabit RJ-45 ports shared with 2 SFP transceiver slots
2 Gigabit RJ-45 ports
8.8/17.6 Gbps of aggregate bandwidth
Non-blocking switching architecture
Spanning Tree Protocol and Rapid STP
Up to four LACP or static 4-port trunks
Layer 2/3/4 CoS support through four priority queues
Full support for VLANs with GVRP
IGMP multicast filtering and snooping
Support for jumbo frames up to 9 KB
Manageable via console, Web, SNMP, RMON

Normal Mode
— Performing Power-On Self Tests (POST) —
DUMMY Test 1……………..PASS
UART LOOP BACK Test……….PASS
DRAM Test………………..PASS
Timer Test……………….PASS
RTC Initialization………..PASS
Switch Int Loopback test…..PASS
Done All Pass.
—————— DONE ———————
Loading Runtime Image File : SMC6726AL2_V2.3.0.3.bix
Runtime 2.3.0.3

First available memory = 17763456(0x10f0c80)
Available Memory Size = 14727652(0xe0b9e4)

I2C Initialization ………… PASS

Board ID=11, 24FE Standalone.

Set Transition mode …
Finish Set Transition mode …
Enter Transition mode …
Finish Transition mode …
Enter Master mode …
Load certificate files : Starting
Load certificate files : Finished
