Quad S 510 Power Amplifier Transzformátor Kártya

Leírás

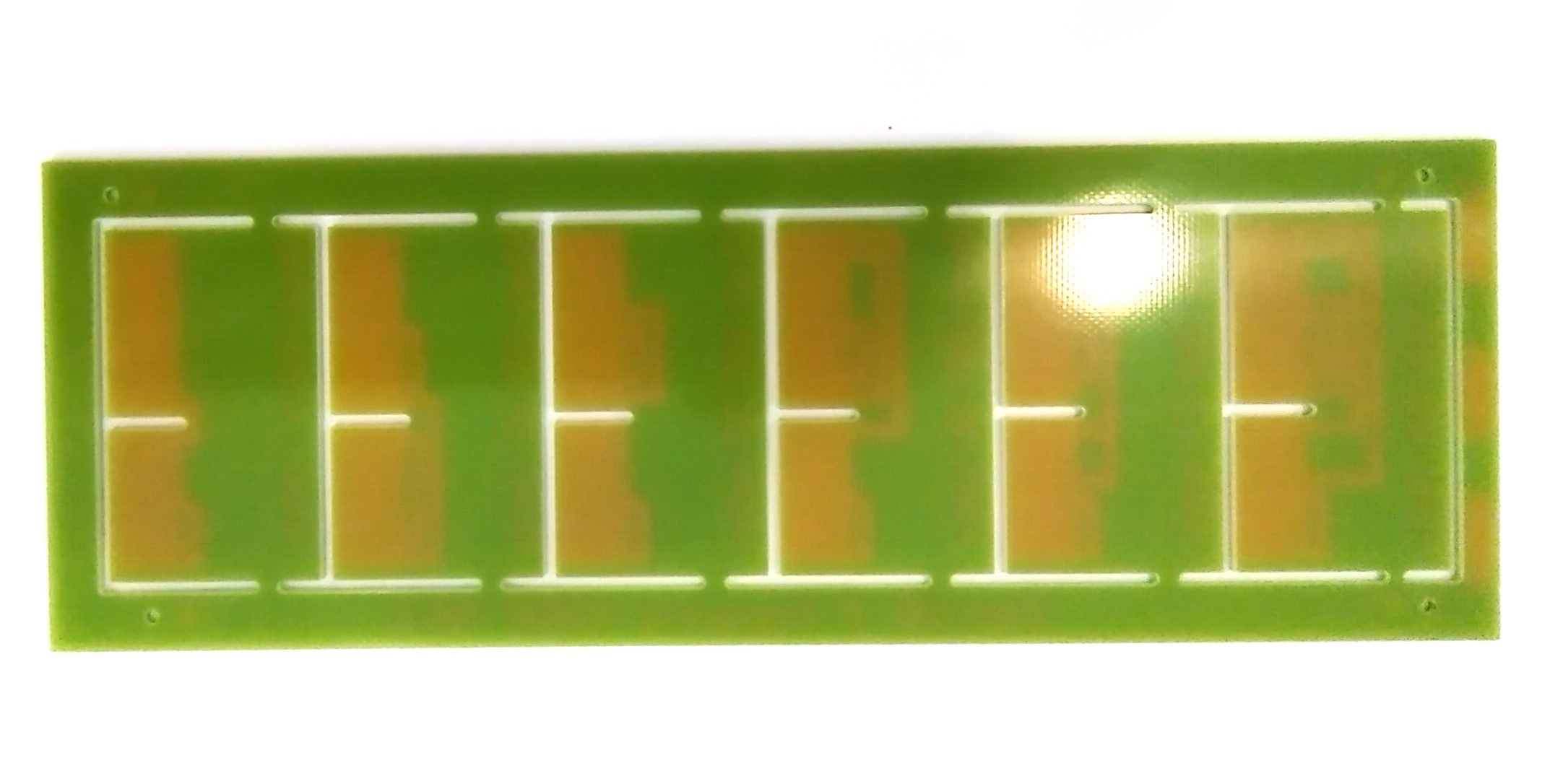

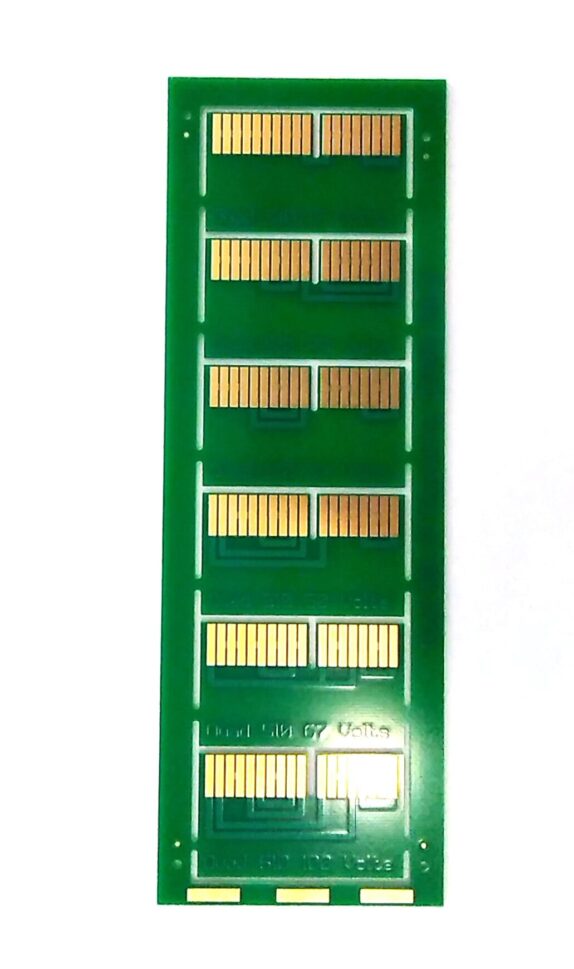

Készletből megmaradt utolsó darab Quad S 510 Power Amplifier Transzformátor Kártya

QUAD 510 SPECIFICATION instruction book Frequency Response: Ref 1kHz – 0.5dB at 20Hz and 20kHz

Power Response: Ref 1kHz-3dB at 25Hz and 30kHz OdB at 40Hz and 20kHz

Power Output: Power v distortion for various frequencies with continuous sine wave into minimum recommended load. Load Impedance: Power output (watts) 40Hz any level up to 135 watts < 0.03% Dtot 1 KHz any level up to 135 watts < 0.01% Dtot 20KHz any level up to 135 watts < 0.1% Dtot

2Ω 17Vrms 18Ω 4.5Ω 25Vrms 32Ω 8Ω 33Vrms 72Ω 50Vrms 67Vrms 100Vrms Output Regulation: Better than 10% for load changes from open circuit to minimum recommended value.

Signal Input Level: 0.5Vrms at maximum gain for 135 watts into minimum recommended load.

Input Impedance: 20ΚΩ in parallel with 50H. Hum and Noise: -115dB unweighted ref. full power (15.7kHz measurement bandwidth)

Stability: Unconditional. A.C. Input: 110-120V, 220-240V 50-60Hz 20-40 watts

Protection: The amplifier is fully protected against short circuit output or input overload Weight: 13Kg

Dimensions: Width 482.6mm (19″), Height (2U) 88mm (3/2″), Depth 320mm (12/2″)
